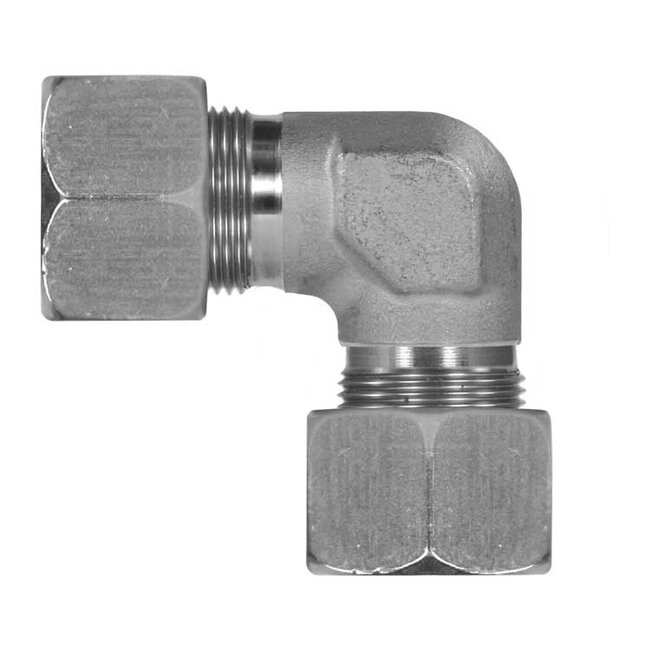

W 18L roestvrij staal

24° DIN Compression pipe couplings
Pipe diameter: 18 mm
Lenght: 40 mm
Type W, cone 24°
Whitworth pipe thread
Material: Stainless steel (V4A 1.4571 / AISI 316 TI)

Which operating pressure for stainless steel?
Light series: L
Nominal pressure acc. to DIN 2401 -> 315 bar

Standard tube connection program complies with DIN 2353 and ISO ISO 8434-1
